• 17" x 6.5" steel wheels
• P225/65R17 touring BSW tires
• 17" wheel covers
• Compact spare tire
• Tire carrier winch
• Body-color fascias
• Accent bodyside molding
• Belt moldings
• Black/bright grille
• Halogen quad headlamps
• Headlamp time-delay off
• Fold-away heated pwr mirrors
• Tinted glass windows
• Variable intermittent windshield wipers
• Rear window wiper/washer
• Manual right sliding door w/glass
• Manual left sliding door w/glass
• Black door handles

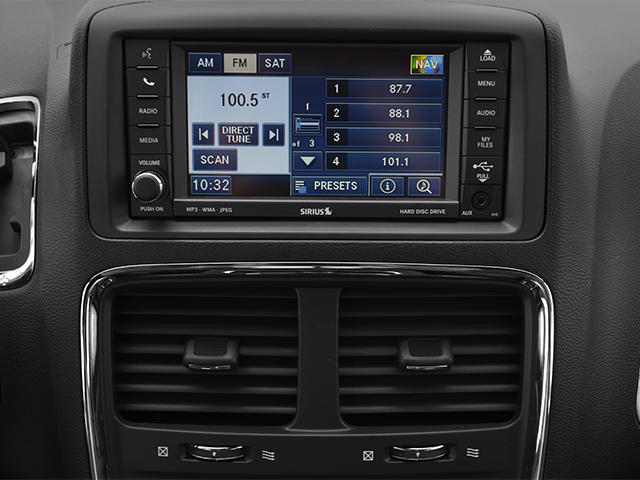

• Uconnect 130 -inc: AM/FM stereo w/CD/MP3 player
• (4) speakers
• Fixed long mast antenna
• Audio input for mobile devices

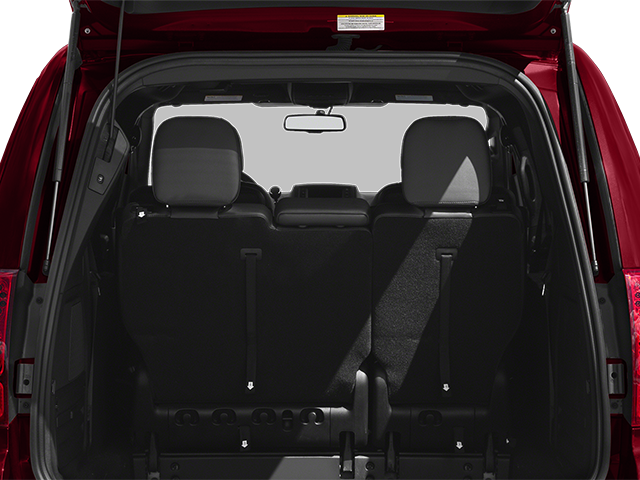

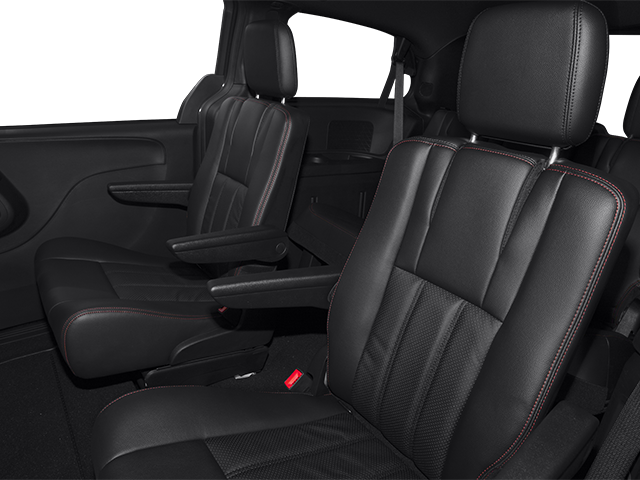

• 2nd row fold-in-floor bucket seats -inc: 3rd row Stow 'N Go w/tailgate seats

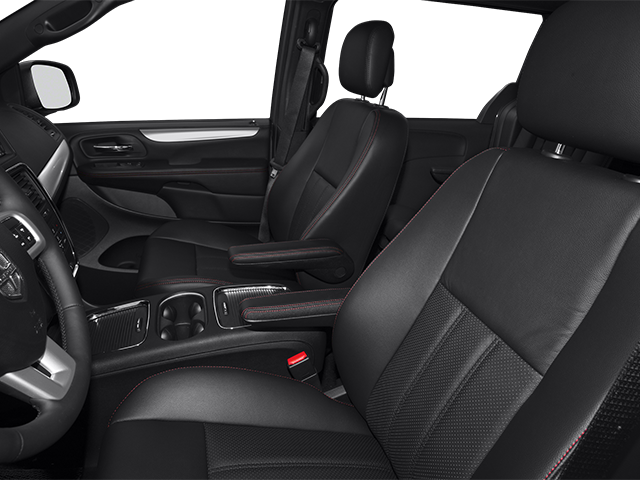

• Front cloth low-back bucket seats
• Manual adjustable seats
• Active head restraints
• Carpet flooring
• Black sill applique

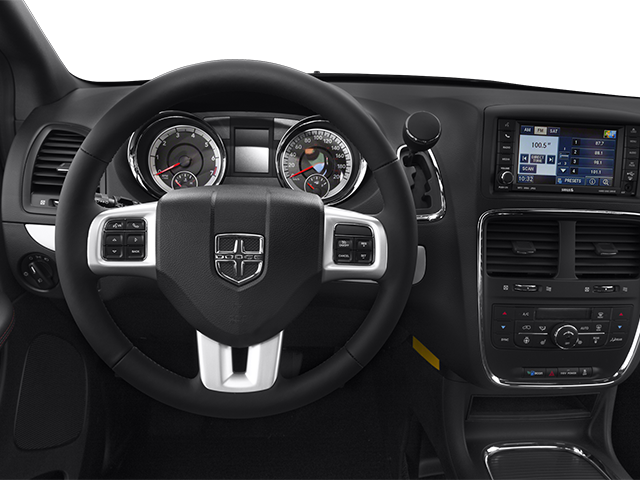

• Luxury steering wheel
• Tilt/telescopic steering wheel column
• Steering wheel mounted audio controls

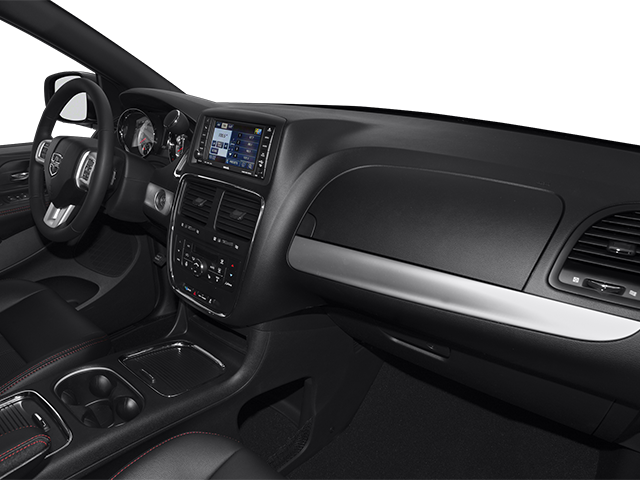

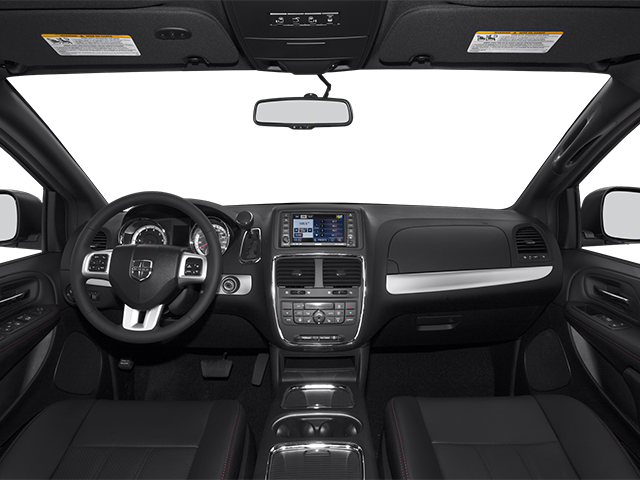

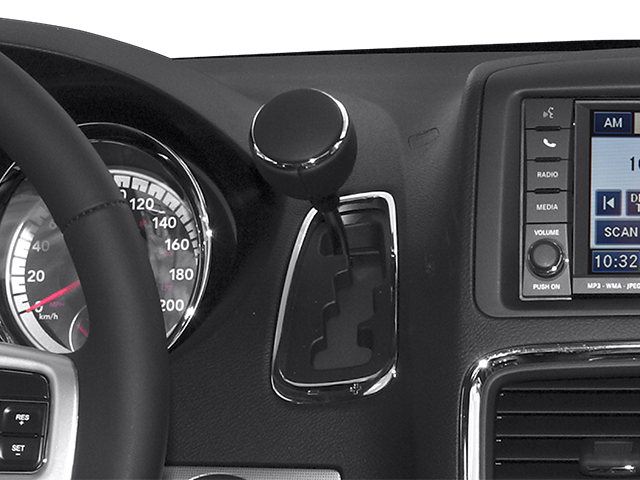

• Instrument panel
• Instrument cluster w/tachometer
• Lower instrument panel cubby bin
• 120 MPH primary speedometer
• Outside temp display
• Front pwr windows w/driver-side 1-touch feature
• Pwr locks
• Non adjustable pedals
• Keyless entry w/immobilizer
• Tip start
• Speed control
• Air conditioning w/dual zone temp control
• Rear window defroster
• Air filter

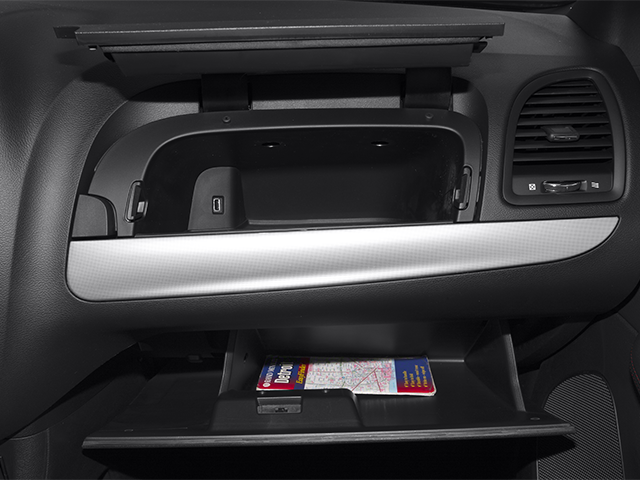

• Dual glove boxes
• 12V DC front & rear pwr outlets
• Overhead console
• Observation mirror
• Driver side sun visor w/mirror
• Passenger side sun visor w/mirror
• Assist handles
• Front courtesy/map lamps
• Door courtesy lamps
• Rear dome lamp
• Liftgate flood lamp
• Rear seatback grocery bag hooks
• LH rear quarter storage bin

• 4-wheel anti-lock disc brakes
• Electronic stability program
• Advanced multi-stage front air bags
• Driver knee-bolster air bag
• Supplemental front seat side air bags
• Supplemental side curtain air bags for all rows
• Rear child safety locks
• LATCH ready child seat anchor system
• Tire pressure monitor
• Dual note electric horn

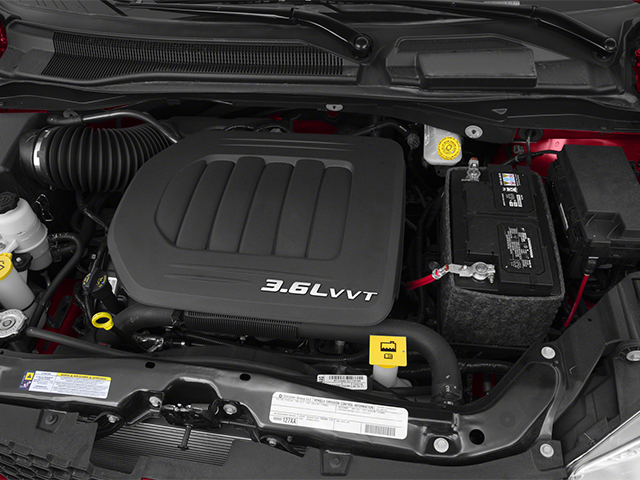

3.6L VVT 24-VALVE V6 FLEX FUEL ENGINE

• (STD)

• Quick Order Package 29D American Value Package
• 3.16 Axle Ratio
• 17" x 6.5" Steel Wheels
• Wheels: 16" x 6.5" Steel (Discontinued)
• Cloth Low-Back Bucket Seats
• Touring Suspension
• Radio: Uconnect 130 AM/FM/CD/MP3
• Steering Wheel Mounted Audio Controls
• 16" Wheel Covers
• 17" Wheel Covers
• 4 Speakers
• Driver's Seat Mounted Armrest
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Steering wheel mounted audio controls
• Speed control
• Remote keyless entry
• Reclining 3rd row seat
• Rear window wiper
• Rear window defroster
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger seat mounted armrest
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Knee airbag
• Illuminated entry
• Heated door mirrors
• Front wheel independent suspension
• Front reading lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Brake assist
• Bodyside moldings
• Anti-whiplash front head restraints
• Adjustable head restraints: driver and passenger w/tilt
• AM/FM radio
• ABS brakes
• 3rd row seats: split-bench
• Tachometer
• Spoiler
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Vehicle
• EPA Classification: 2WD Minivan
• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 10.300
• Weight Information
• Base Curb Weight (lbs): 4510
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Twist-beam
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.900 x 1.100
• Rear Brake Rotor Diam x Thickness (in): 12.000 x 0.500
• Tires
• Front Tire Order Code: TU3
• Rear Tire Order Code: TU3
• Spare Tire Order Code: TBK
• Front Tire Size: P225/65R17
• Rear Tire Size: P225/65R17
• Spare Tire Size: Compact

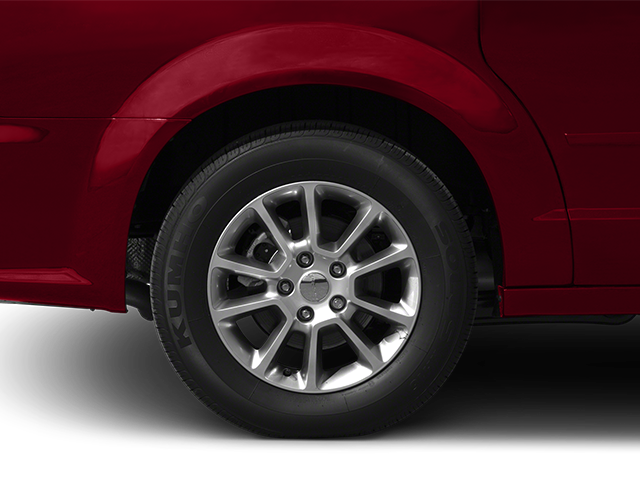

• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), Overall: 14.300
• Lock to Lock Turns (Steering): 2.900
• Turning Diameter - Curb to Curb (ft): 39.100
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 20.000
• Exterior Dimensions
• Wheelbase (in): 121.200
• Length, Overall (in): 202.800
• Width, Max w/o mirrors (in): 78.700
• Height, Overall (in): 67.900
• Track Width, Front (in): 65.600
• Track Width, Rear (in): 64.800
• Min Ground Clearance (in): 5.600
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): 24.400
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.000
• Cargo Box (Area) Height (in): 46.200
• Cargo Volume to Seat 1 (ft³): 143.800
• Cargo Volume to Seat 2 (ft³): 83.300
• Cargo Volume to Seat 3 (ft³): 33.000
• Interior Dimensions
• Passenger Capacity: 7
• Passenger Volume (ft³): 163.500
• Front Head Room (in): 39.800
• Front Leg Room (in): 40.700
• Front Shoulder Room (in): 63.700
• Front Hip Room (in): 58.400
• Second Head Room (in): 39.300
• Second Leg Room (in): 36.500
• Second Shoulder Room (in): 64.100
• Second Hip Room (in): 65.000
• Third Head Room (in): 37.900
• Third Leg Room (in): 32.700
• Third Shoulder Room (in): 62.000
• Third Hip Room (in): 48.700
• Summary

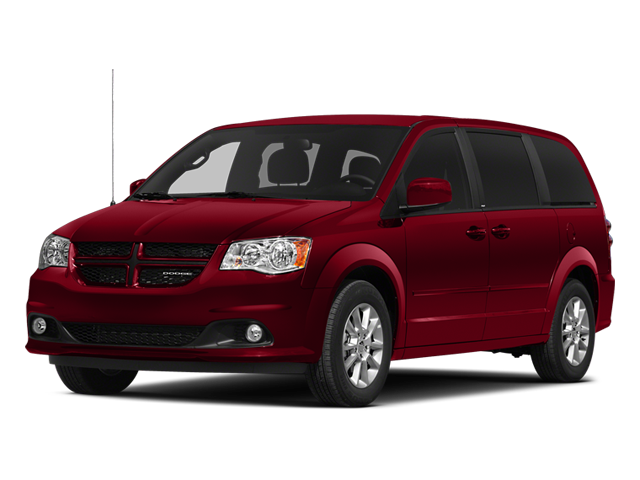

• Vehicle Name: Dodge Grand Caravan
• Body Style: Passenger Van
• Emissions
• EPA Greenhouse Gas Score: 5
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.1
