• Body, standard
• Rear wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 105 amps (Not available with CG13405 or CH13405 models.)
• Frame, full-length box ladder-type
• Suspension, front independent with coil springs and stabilizer bar (Requires CG13405, CG23405, CG23705, CG33405 and CG33705 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare (Standard on CG23405, CG23705, CG33405 and CG33705 models.)
• Tires, front LT245/75R16E all-season, blackwall (Standard on the CG23405, CG23705, CG33405 and CG33705 models.)
• Tires, rear LT245/75R16E all-season, blackwall (Standard on the CG23405, CG23705, CG33405 and CG33705 models.)
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle (Standard on the CG23405, CG23705, CG33405 and CG33705 models.)
• Door, swing-out passenger-side, 60/40 split
• Bumpers, front and rear painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers

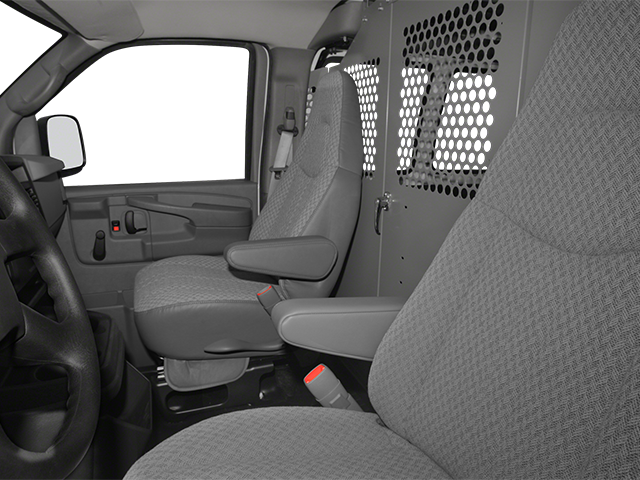

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim.)
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim
• Air conditioning, single-zone manual
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)

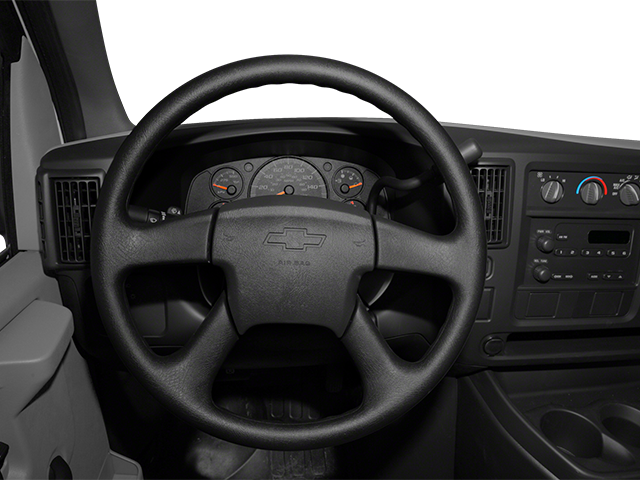

• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Door locks, power with lock-out protection (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Trim panels, hinged rear side doors and hinged rear doors
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models CG23405, CG23705, CG33405 and CG33705. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Requires (C6P) 8600 lbs. (3901 kg) GVWR or (C6Y) 9600 lbs. (4354 kg) GVWR. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System (does not apply to spare tires)

PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

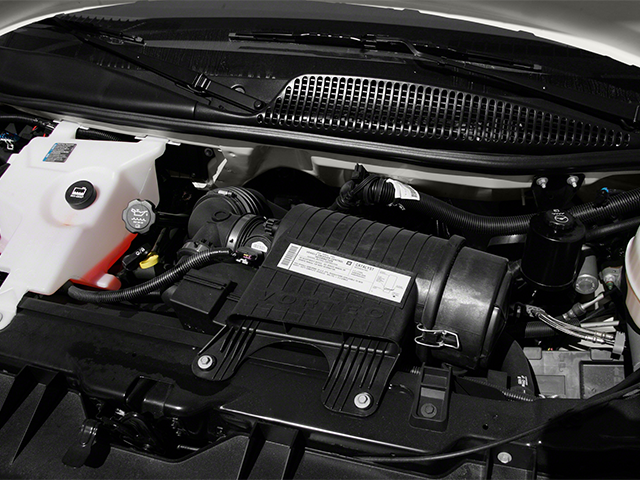

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler and (V14) transmission oil cooler.

REAR VISION CAMERA

• display integrated into rearview mirror (Integrated into navigation screen when (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation is ordered.)

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform and 7-pin sealed connector (Includes (UY7) 7-lead trailer wiring harness.

KEY EQUIPMENT, TWO ADDITIONAL KEYS FOR SINGLE KEY SYSTEM

• Provides two additional spare keys for a total of (4). (Keys will be cut but not programmed)

LABEL, FASTEN SAFETY BELTS

• "Fasten Safety Belts" reminder label on driver and front passenger door window glass.

GOVERNOR, ELECTRONIC SPEED SENSOR SET TO 75 MPH

• Provides electronic software to limit maximum road speed to 75-MPH

SEATS, FRONT BUCKET WITH VINYL TRIM

• and outboard head restraints
• includes inboard armrests. (STD)

REMOTE KEYLESS ENTRY

• with 2 transmitters and remote panic button

VISORS, DRIVER AND FRONT PASSENGER

• vinyl in lieu of standard cloth

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive tow/haul mode and internal transmission oil cooler (STD)

EMISSIONS OVERRIDE, FEDERAL

• (for vehicles ordered by dealers in Federal emission states with (YF5) or (NE1) emissions - Not required for vehicles being shipped to California
• Connecticut
• Delaware
• Maine
• Maryland
• Massachusetts
• New Jersey
• New York
• Oregon
• Pennsylvania
• Rhode Island
• Vermont or Washington)

BATTERY, HEAVY-DUTY 770 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

ONSTAR, 6 MONTHS OF DIRECTIONS AND CONNECTIONS PLAN

• includes Automatic Crash Response
• Stolen Vehicle Assistance
• Roadside Assistance and Turn-by-Turn Navigation

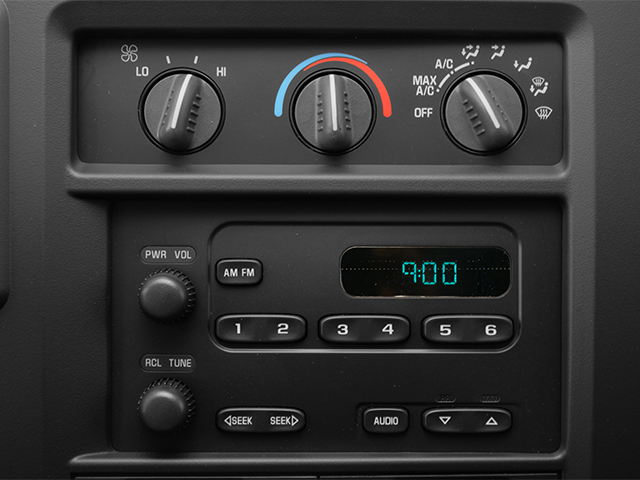

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan
• digital clock and 2 front door speakers

TIRES, FRONT LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

TIRES, REAR LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT

• (STD)

BODY, STANDARD

• (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS

• with head restraints and vinyl or cloth trim (STD)

• 145 Amp Alternator
• 16' X 6.5' Steel Wheels
• 3.42 Rear Axle Ratio
• 770 CCA Heavy-Duty Maintenance-Free Battery
• 8,600 lbs (3,901 Kg) GVWR
• AM/FM Stereo with Seek and Scan/digital Clock
• California State Emissions Requirements
• Driver and Front Passenger Vinyl Visors
• Electronic 6-Speed Heavy Duty Automatic Transmission with Overdrive
• Federal Emissions Override
• Front and Rear Chrome Bumpers with Step-Pad
• Front LT245/75R16E AS BW Tires
• Full-Length Black Rubberized-Vinyl Floor Covering
• Medium Pewter
• OnStar 6 Months Directions and Connections Plan
• Rear LT245/75R16E AS BW Tires
• Rear Side and Rear Door Trim Panel Delete
• Reclining High-Back Front Bucket Seats
• Remote Keyless Entry
• SEO: 2 Additional Keys For Single Key System
• SEO: Auxiliary Battery Tray
• SEO: Electronic Speed Sensor 75-Mph Governor
• SEO: Fasten Safety Belts Label
• SEO: Orange Safety Belts
• Spare Tire Delete
• Summit White
• Convenience Package
• Fixed Rear and Side Cargo Door Glass
• Heavy-Duty Trailering Equipment
• Preferred Equipment Group 1
• Rear Vision Camera
• Vortec 4.8L V8 SFI Engine
• 12V power outlets 2 12V power outlets
• 2 Speakers
• 4-Wheel Disc Brakes
• 7-Pin Sealed Connector Trailer Wiring
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Alternator
• Antenna Fixed audio antenna
• App Link Smart device integration OnStar RemoteLink smart device app link
• Armrests front driver Driver seat armrest
• Armrests front passenger Front passenger seat armrest
• Auto door locks Auto-locking doors
• Auto headlights Auto on/off headlight control
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Heavy-duty lead acid battery
• Beverage holders Front beverage holders
• Bluetooth®
• Body panels Fully galvanized steel body panels with side impact beams
• Brake type 4-wheel disc brakes
• Bumper rub strip front Black front bumper rub strip
• Bumper rub strip rear Black rear bumper rub strip
• Bumpers front Chrome front bumper
• Bumpers rear Chrome rear bumper
• Climate control Manual climate control
• Clock Digital clock
• Convex spotter Driver and passenger convex spotter mirrors
• Corrosion perforation warranty 72 month/100,000 miles
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Drive type Rear-wheel drive
• Driver & Front Passenger Vinyl Visors
• Driver door bin
• Driver information center
• Driver seat direction Driver seat with 4-way directional controls
• Driver's Seat Mounted Armrest
• Dual front impact airbags
• Electronic Stability Control
• Electronic stability control StabiliTrak electronic stability control system
• Emergency SOS Capable OnStar Directions & Connections vehicle integrated emergency SOS system
• Emissions Federal emissions
• Emissions tiers Tier 2 Bin 8 emissions
• Engine block material Iron engine block
• Engine Configuration Vortec V8
• Engine cooler Engine oil cooler
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Vortec 4.8L V-8
• Engine Vortec 4.8L V-8 variable valve control, regular gasoline, engine with 285HP
• Engine/electric motor temperature gauge
• External Transmission Oil Cooler
• First-row windows Power first-row windows
• Fixed Rear & Side Cargo Door Glass
• Fixed Rear Door Window Glass
• Floor console Partial floor console
• Floor console storage
• Floor coverage Full floor coverage
• Floor covering Full vinyl floor covering
• Folding door mirrors Manual folding door mirrors
• Front & Rear Chrome Bumpers w/Step-Pad
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front Bucket Seats
• Front head restraints Fixed front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Cancellable front passenger air bag
• Front seat upholstery Vinyl front seat upholstery
• Front seatback upholstery Vinyl front seatback upholstery
• Front wheel independent suspension
• Fuel Type Regular gasoline
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Grille style Black grille
• Headlight type Sealed beam headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Front headliner coverage
• Headliner material Cloth headliner material
• Height adjustable seatbelts Front height adjustable seatbelts
• High mount stop light High mounted center stop light
• Ignition Spark ignition system
• Ignition type Mechanical
• Illuminated entry
• Immobilizer
• Inside Rear-View Manual Day/Night Mirror
• Instrumentation display Analog instrumentation display
• Internet access Selective service internet access
• Key in vehicle warning
• Keyfob cargo controls Keyfob trunk control
• Keyfob keyless entry
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Low level warnings Low level warning for fuel
• Low tire pressure warning
• Low tire pressure warning Tire specific low air pressure warning
• Maintenance warranty 24 month/24,000 miles
• Manual driver seat controls Driver seat manual reclining and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Number of airbags 2 airbags
• Number of doors 3 doors
• Number of first-row screens 1 total number of 1st row displays
• Oil pressure gauge
• One-touch down window Driver one-touch down window
• OnStar 6 Months Directions & Connections Plan
• Overdrive transmission
• Paint Non-metallic paint
• Passenger cancellable airbag
• Passenger door bin
• Passenger doors rear right Split swing-out right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger seat mounted armrest
• Power Door Locks w/Lock-Out Protection
• Power steering
• Power windows
• Powertrain type ICE
• Powertrain warranty 60 month/100,000 miles
• Radiator
• Radio AM/FM
• REAR BACKUP CAMERA
• Rear bumper step
• Rear camera Rear mounted camera
• Rear cargo door Split swing-out rear cargo door
• Rear cargo floor type Vinyl/rubber rear cargo area floor
• Rear cargo light Rear cargo area light
• Rear Springs Regular grade rear springs
• Rear window trim Black rear window trim
• Rear windshield Fixed rear windshield
• Remote panic alarm
• Roadside warranty 60 month/100,000 miles
• Running lights Daytime running lights
• Seating capacity 2
• Second-row windows Fixed second-row windows
• Seek scan
• Selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Spare tire Steel wheel
• Speakers number 2 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Split front seats Bucket front seats
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Sun visor strip
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailgate control Tailgate/power door lock
• Tailpipe Partial stainless steel single exhaust
• Tinted windows Light tinted windows
• Tires LT245/75SR16 AS BSW front and rear tires
• Towing class Class IV tow rating
• Towing hitch Trailer hitch
• Towing wiring harness Trailer wiring harness
• Traction control
• Traction control All-speed ABS and driveline traction control
• Transmission 6-speed automatic
• Transmission oil cooler
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn-by-turn nav OnStar Turn-by-Turn Navigation
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Vehicle tracker OnStar Directions & Connections vehicle tracker
• Ventilated brakes Front and rear ventilated disc brakes
• Vinyl Seat Trim
• Voltmeter
• Wheel covers Wheel hub covers
• Wheels 16 x 6.5-inch front and rear gray steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 2886
• Curb Weight - Rear (lbs): 2405
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1110
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.14
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.00
• Length, Overall w/rear bumper (in): 224.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 84.60
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.80
• Ground Clearance, Front (in): 11.00
• Ground Clearance, Rear (in): 7.10
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 20.30
• Step Up Height - Side (in): 20.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.60
• Cargo Area Length @ Floor to Seat 1 (in): 124.60
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.70
• Cargo Box (Area) Height (in): 52.90
• Cargo Volume (ft³): 239.7
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary
• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
